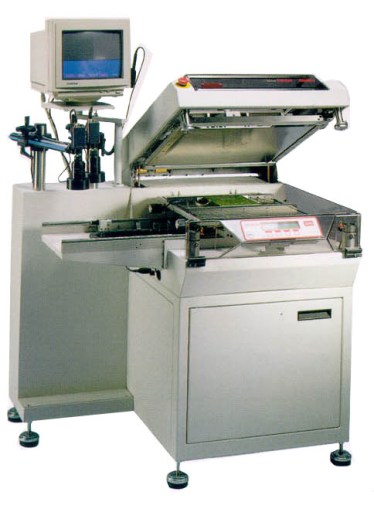

Quad MV-100 Screen Printer

The MV-100 uses production-proven technology. It is fitted with sophisticated menu-driven control software for fast set-up and ease of use, making it one of the most user-friendly printers available. The tooling system is SMEMA compliant and will provide the most densely populated, double sided PCBs. The MV-100 represents fine pitch printing and provides accuracy, repeatability and reliability in the most demanding surface mount applications. With an stablished reputation for being a solid dependable solder past printer, it also exemplifies a strong Vision System Technology. The Vision System is controlled simply and effectively by on-screen menus and a light pen.

• specs

Quad MV-100 Screen Printer Features:

• Menu-driven control software for fast set-up and ease of use
• SMEMA compliant tooling system
• Compact footprint with 0.4mm ultra-fine pitch capability
• Advanced Vision Alignment: adjustable from 3 x 4mm to 8 x 6mm
• Print Area:400 x 450mm (15.7 x 17.7in) twin squeegee or 420 x 450mm (16.5 x 17.7in) single squeegee
• Upgrade Options Available: Screen frame adaptors, Power-driven vision alignment, Host management system, Underside stencil/screen cleaning
